Basic parameters
-
Product Model: Q520
-
Main control chip: NORDIC NRF52832
-
Charging chip: Siyuan SY8602
-
Acceleration sensor: STK8321
-
Wear detection: Capacitive induction + photoelectric detection
-
PPG sensor: Goodix 3228T + 2 × SFH2703
-

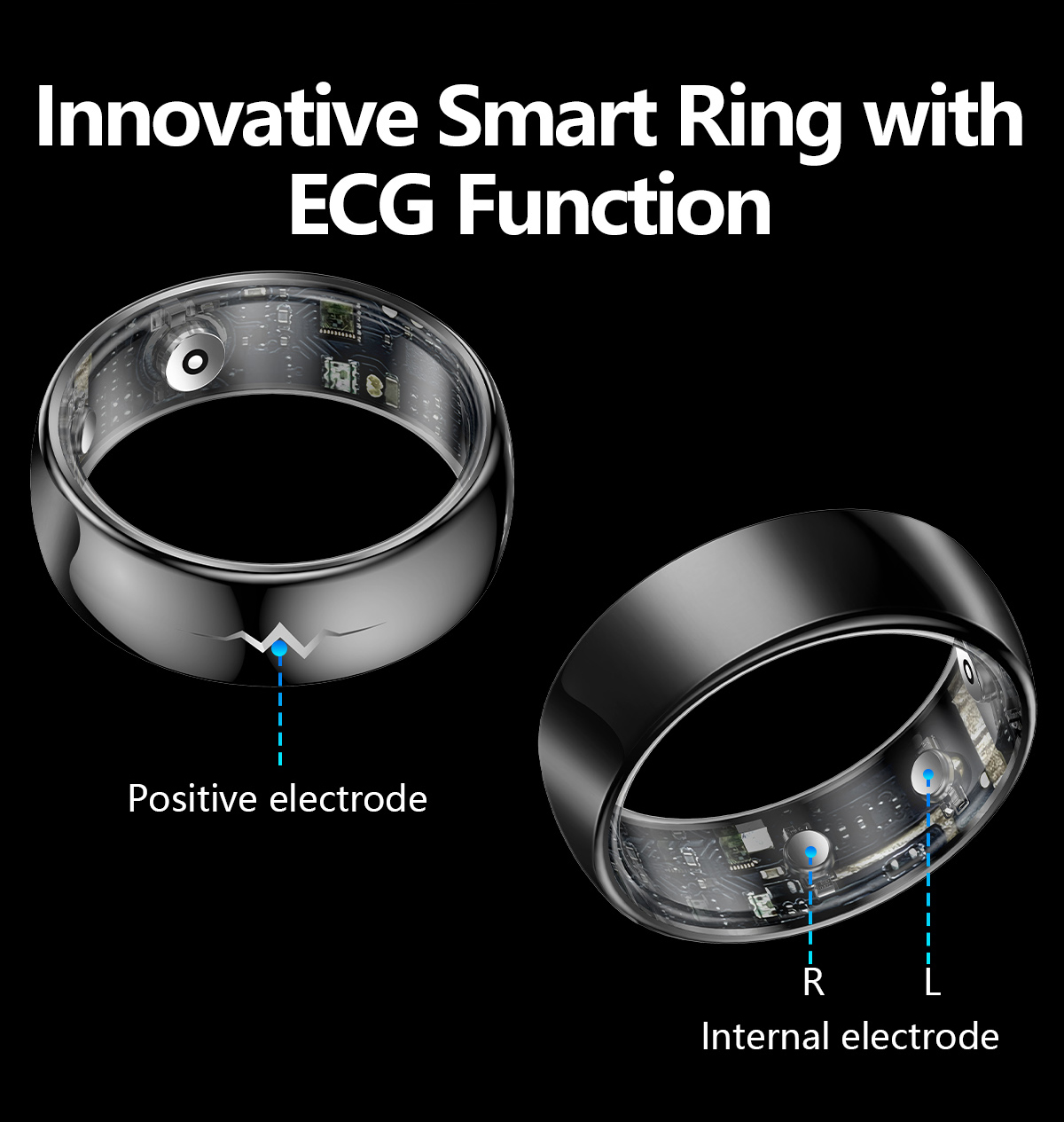

ECG sensor: Goodix 3228T
-
Temperature sensor: Goodix 3228T + high-precision NTC resistor
-
Compatible system: Android 6 and above, iOS 11 and above
Features or selling points
-
Electrocardiogram detection, AI heart health analysis, accurate heart rate detection, true blood oxygen detection, body temperature detection, blood pressure detection, sleep monitoring, non‑invasive blood sugar detection
-
Includes 24‑hour health monitoring and APP active detection
-
Activity information data: step / calorie / distance counting
-
Multi‑exercise modes: running, cycling, skipping rope, fitness, and more
Connection parameters
-
Bluetooth version: 5.3 BLE (low power consumption)
Other parameters
-
Battery type: High‑density polymer lithium battery
-
Battery capacity: 18 mAh
-
Charging method: Magnetic charging + portable charging bin (short circuit protection)
-
Endurance: 4–6 days of use, 30+ days standby
-
Control method: Mobile APP control
-
Appearance material:
-
Shell: Metal 304 stainless steel (no embroidery)
-
Inner circle: High‑density environmentally friendly curing adhesive
-
-
Product color: All light black
-
Ring sizes: 8 inches, 9 inches, 10 inches, 11 inches
Packing
-
Packaging list: Ring, charging cable, user manual, packaging box
-
Packaging information:
-
Outer box size: 235 × 481 × 305 mm
-
Color box size: 109.8 × 93.1 × 28 mm
Box gauge: 100 pcs / box
-
Managed care
ECG Detection| Heart Rate | Blood Oxygen | Blood PressureBlood Glucose | Body Temperature | SleepAutomatic Health Monitoring Data
Sports vitalityRunning | Cycling | Skipping Rope | Fitness and MoreStep Counting | Calories | DistanceAutomatic Activity Monitoring Data
